Silaplane™
(Reactive Silicones)

Mono-Terminal Type Product List

Grade Name	Reactive Group	Structural Formula	Molecular Weight (Mn)	Specific Gravity (25ºC)	Viscosity (mm^2/s)
FM-0411P	Hydroxy		1,000	0.96	10-25
FM-0421			5,000	0.97	60-80
FM-0425			10,000	0.97	140-180
FM-DA11	Hydroxy (Diol)		1,000	0.97	50-70
FM-DA21			5,000	0.97	80-160
FM-DA26			15,000	0.97	300-400
FM-0815J	Alkoxysilyl		3,000	0.96	20-30
FM-0711	Methacryloxy		1,000	0.96	7-13
FM-0721			5,000	0.97	54-79
FM-0725			10,000	0.97	150-260
TM-0701T	Methacryloxy		423	0.91	2.9-6.1
TM-0R01	Acryloxy		409	0.93	4.3-4.8

The values shown above are typical values, not guaranteed values.

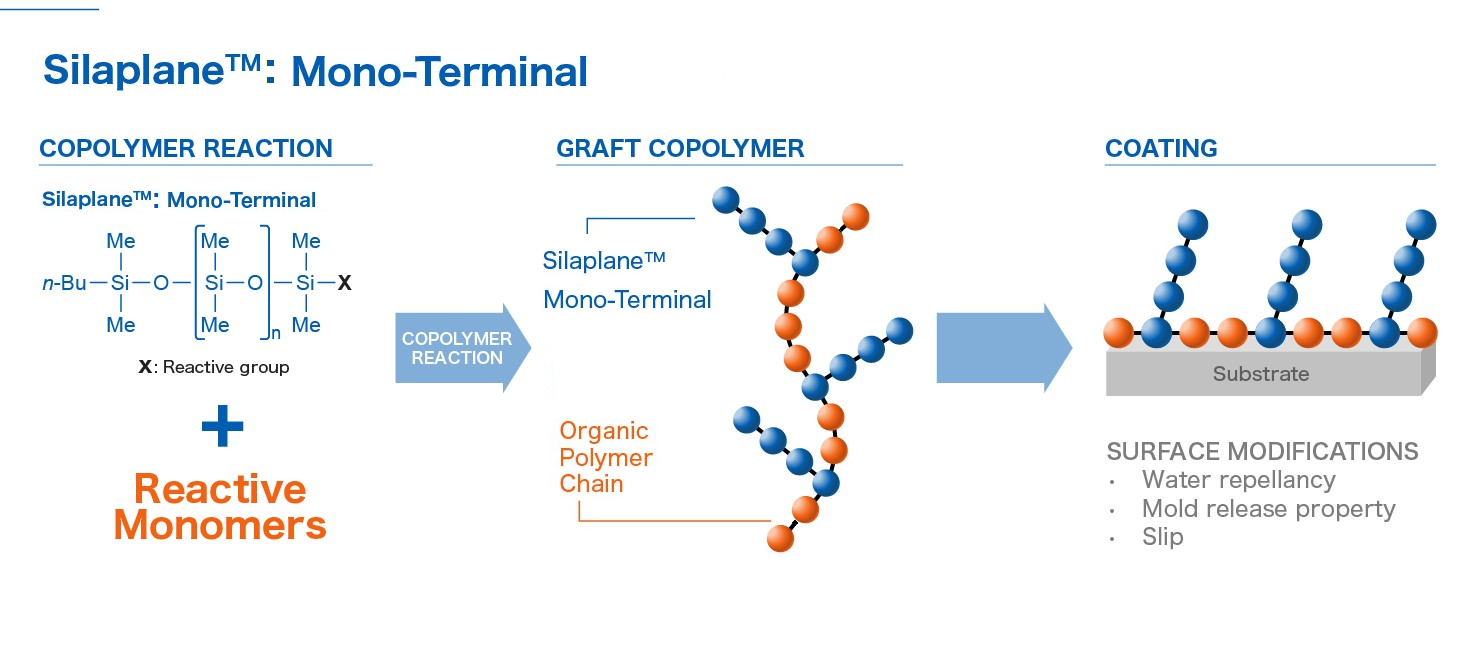

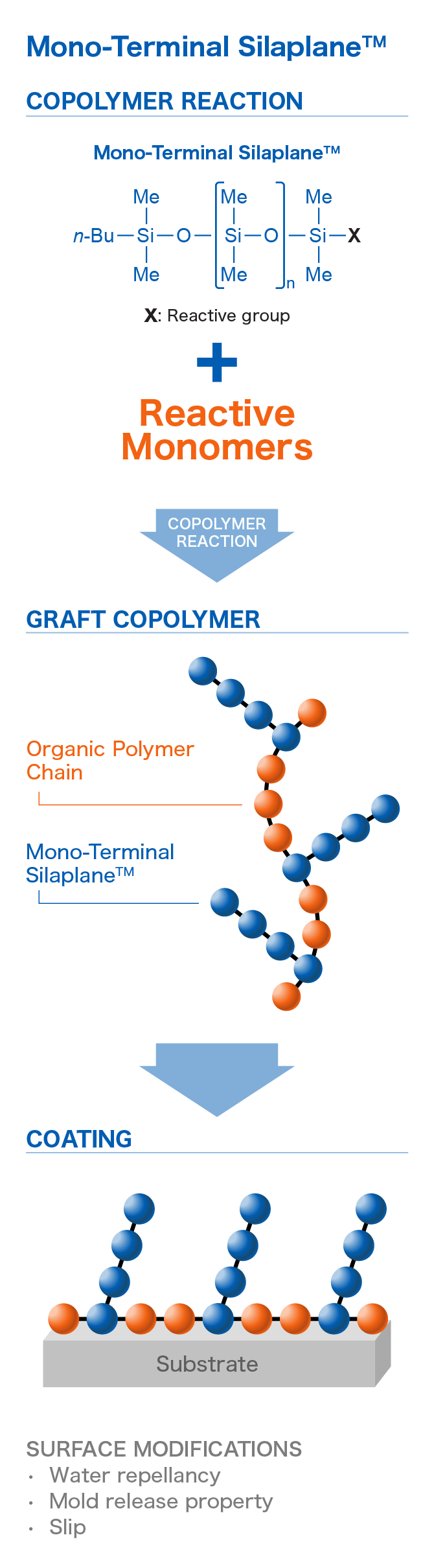

How Silaplane™ (Mono-terminal Type) Works

Graft polymers with silicone side chains are formed by copolymerizing Silaplane™ (Mono-terminal Type) with various monomers and/or polymers . For example, when graft polymers with silicone side chains are used as a component of a coating material, the silicone chains tend to segregate onto the surface of the coating film, giving the coating film surface silicone-specific properties.

Product Features

• Combine with various organic compounds (Urethane and Acryloxy resins)
• Improve surface properties of organic resins
• Improved adsorption to the filler surface with its reactive functional group
• High affinity for silicone binder resin
• Narrow polydispersity and low level of cyclic siloxane or metals impurities.
• Mass produced in large volume

Product Benefits

• Filler dispersion stabilization with low viscosity
• Water/Oil repellency
• Gas permeability (Oxygen, CO₂, CH₄, H₂O, etc.)
• Mold releasability
• Anti-Abrasion resistance, Anti-fouling
