Silaplane™ is a reactive polydimethylsiloxane (PDMS) having reactive functional groups at one or both ends of the linear siloxane chain.
Bi-Terminal Type Product List
| Grade Name | Reactive Group | Structural Formula | Molecular Weight (Mn) | Specific Gravity (25ºC) | Viscosity (mm^2/s) |
|---|---|---|---|---|---|
| FM-3311 | Amino |  |
1,000 | 0.95 | 11-15 |
| FM-3321 | 5,000 | 0.97 | 90-150 | ||
| FM-3325 | 10,000 | 0.97 | 200-400 | ||
| FM-4411 | Hydroxy |  |
1,000 | 0.97 | 30-40 |
| FM-4421 | 5,000 | 0.98 | 100-125 | ||
| FM-4425 | 10,000 | 0.97 | 250-400 | ||
| FM-7711 | Methacryloxy |  |
1,000 | 0.98 | 14-20 |
| FM-7721 | 5,000 | 0.98 | 30-100 | ||
| FM-9915 | Silanol |  |
3,000 | 0.98 | 50-80 |
| FM-9925A | 10,000 | 0.97 | 110-210 |
The values shown above are typical values, not guaranteed values.

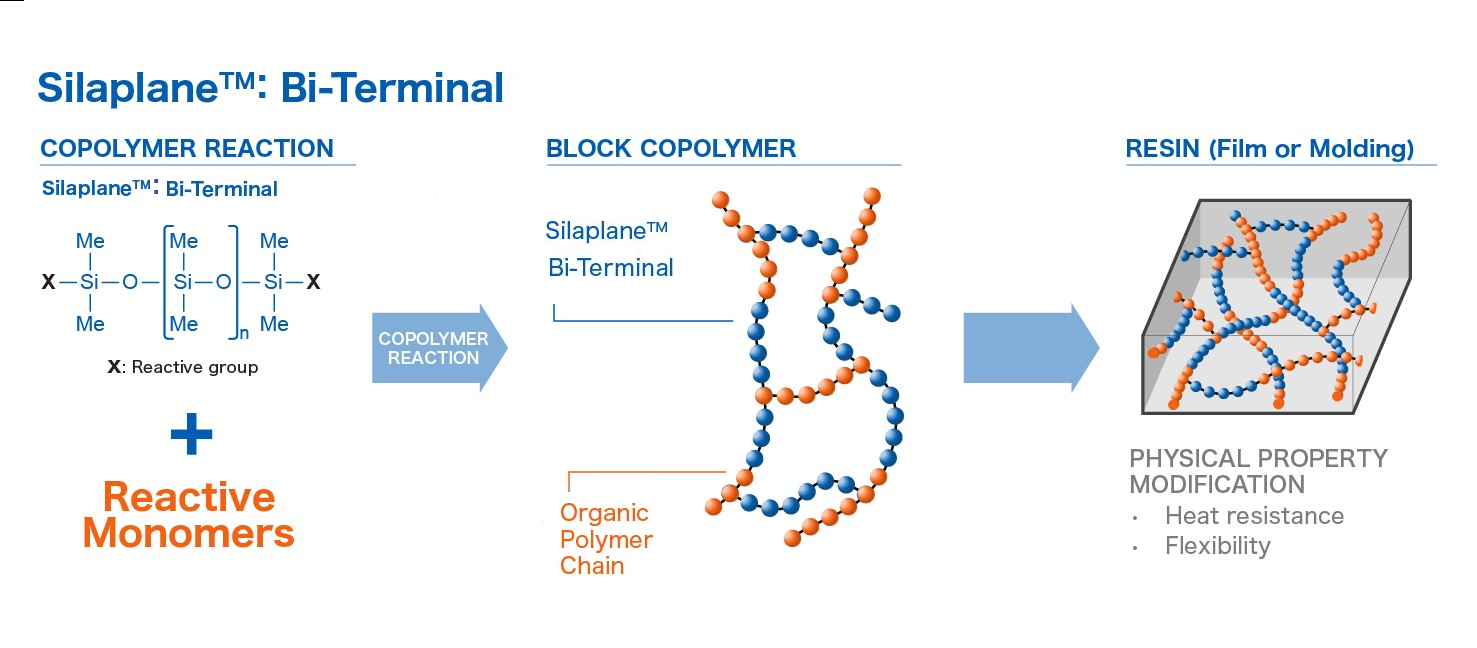

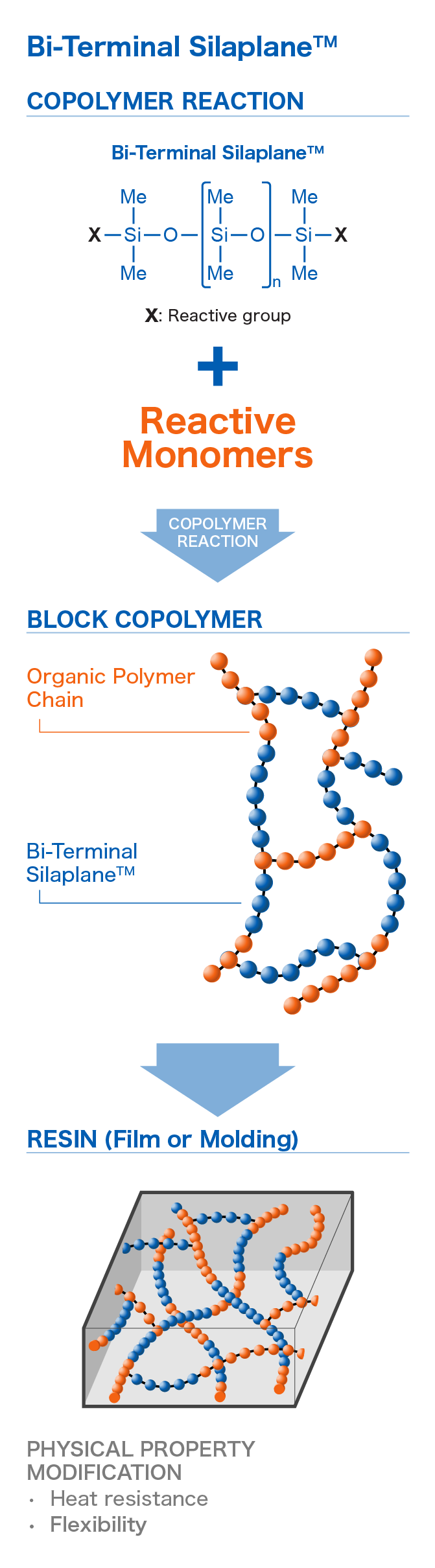

How Silaplane™ (Bi-terminal Type) Works
Block copolymers are formed by copolymerizing Silaplane™ (Bi-terminal Type) with various monomers and/or polymers. It is possible to modify physical properties because silicone chains disperse into the obtained organic resin.
Product Features
- Improve physical properties of organic resins
- React with various organic compounds (Urethane, Urea, Epoxy and Acrylic resins, Polyester, Polyamide, Polyimide)
- High affinity for organic resins especially silicone resins
- Mass produced in large volume
Product Benefits
- Flexibility
- Gas permeability (Oxygen, CO2, CH4, etc.)
- Heat resistance
- Weather resistance
- Impact resistance
